Project 04 · Solar PV

Gold and Wassall, Tamworth

Solar PV · 129.87 kWp commercial rooftop PV system

Site typeWarehouse rooftop
ServiceSolar PV (AC & DC)
LocationTamworth, Staffs
System size129.87 kWp
Modules / inverters218 / 2 GoodWe
Our scopeFull AC & DC install, testing & commissioning

A 129.87 kWp rooftop solar PV system of 218 Astronergy 595W modules on a warehouse at Lichfield Road Industrial Estate, Tamworth. MTM carried out the full AC and DC installation, plus all AC and DC testing and commissioning: the array and labelled DC cable runs in tray across the roof, and two GoodWe inverters with AC isolators and surge protection in the plant room.

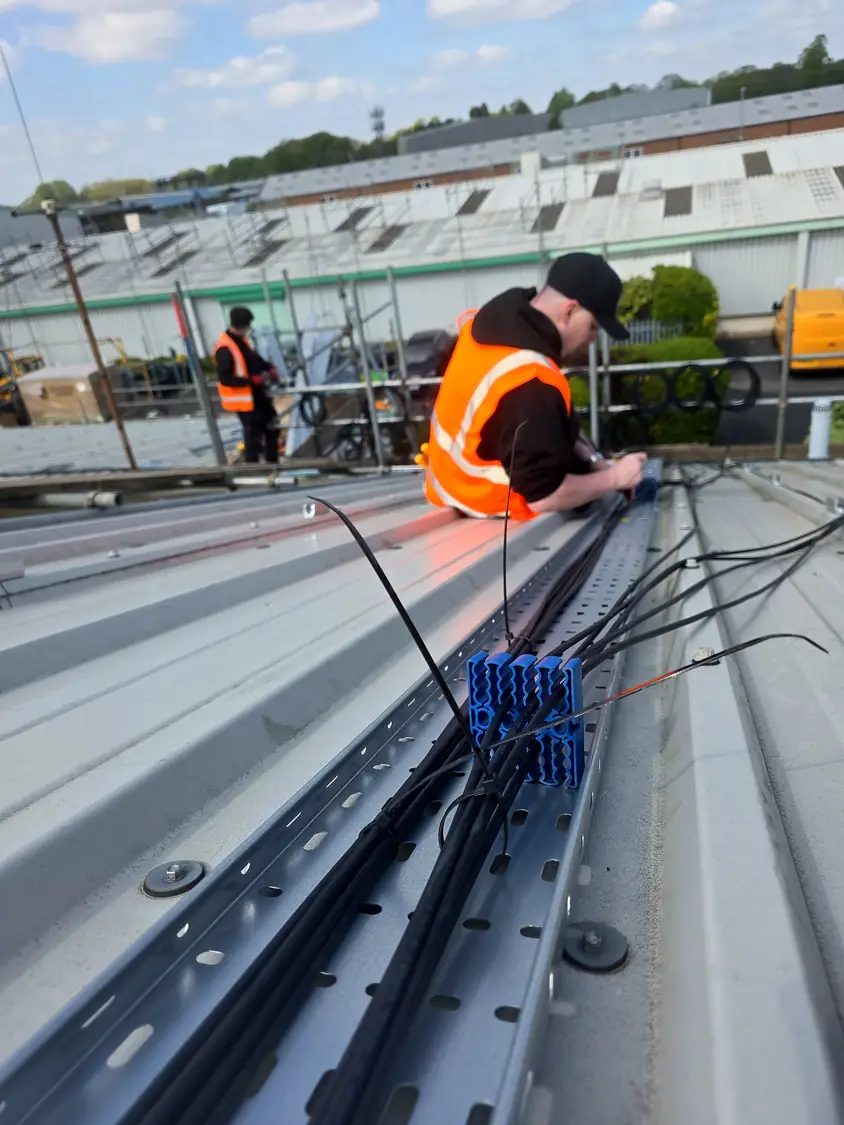

Terminating and dressing DC cables in the roof tray
Terminating and dressing DC cables in the roof tray

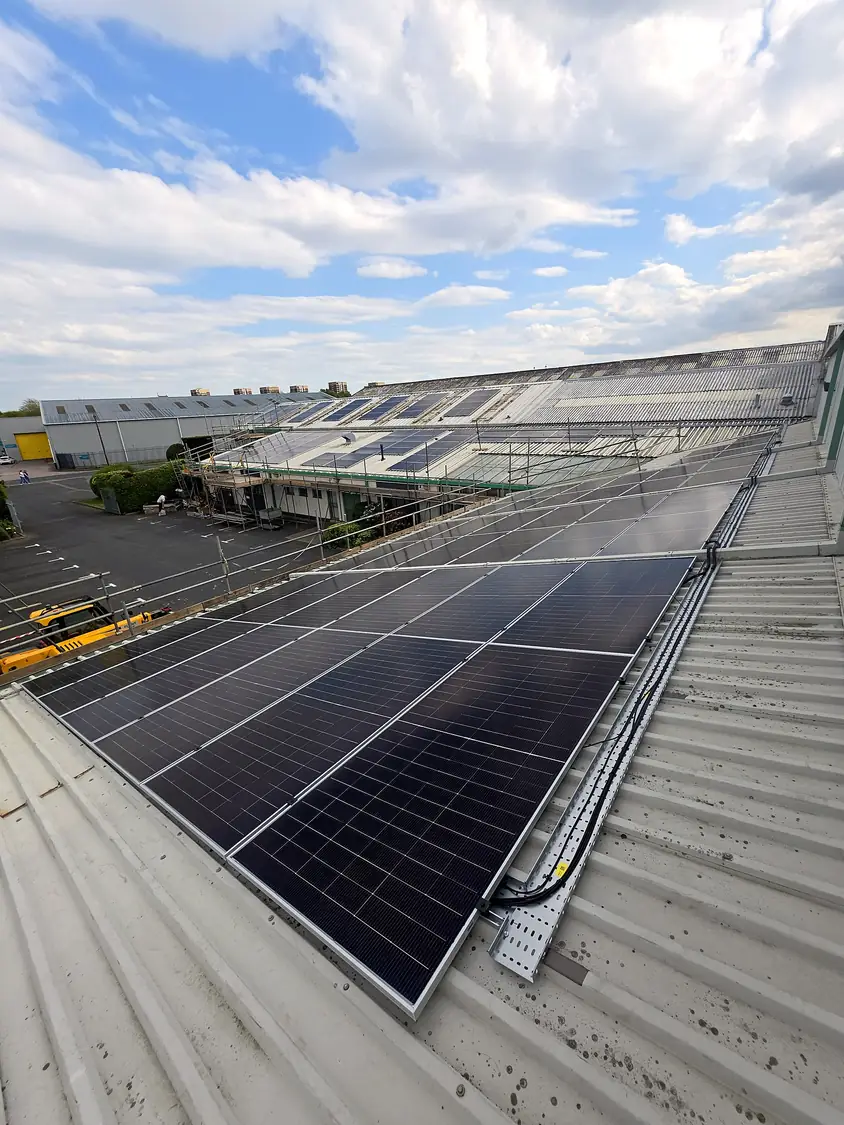

Completed rooftop array
Completed rooftop array

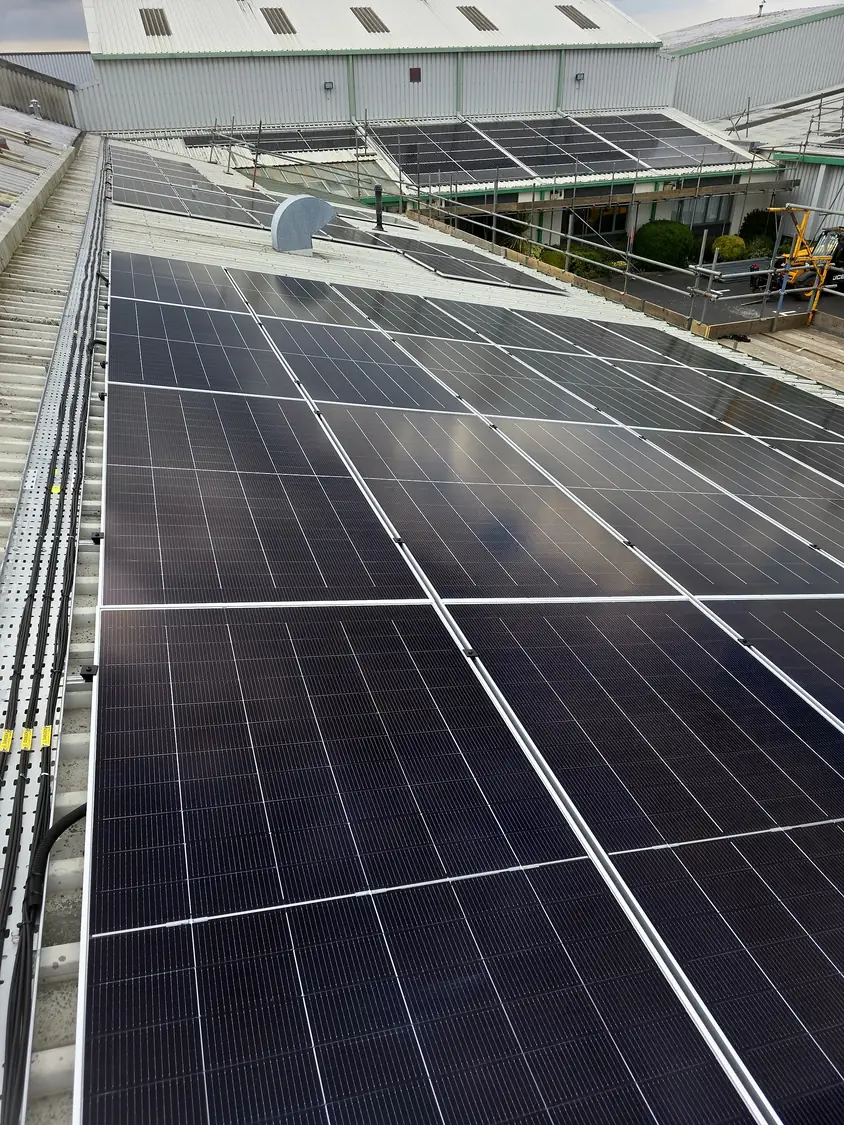

Array rows with DC cable tray alongside
Array rows with DC cable tray alongside

PV installation

218 modules across the warehouse roof, with the DC cables run and labelled in tray to the plant room.

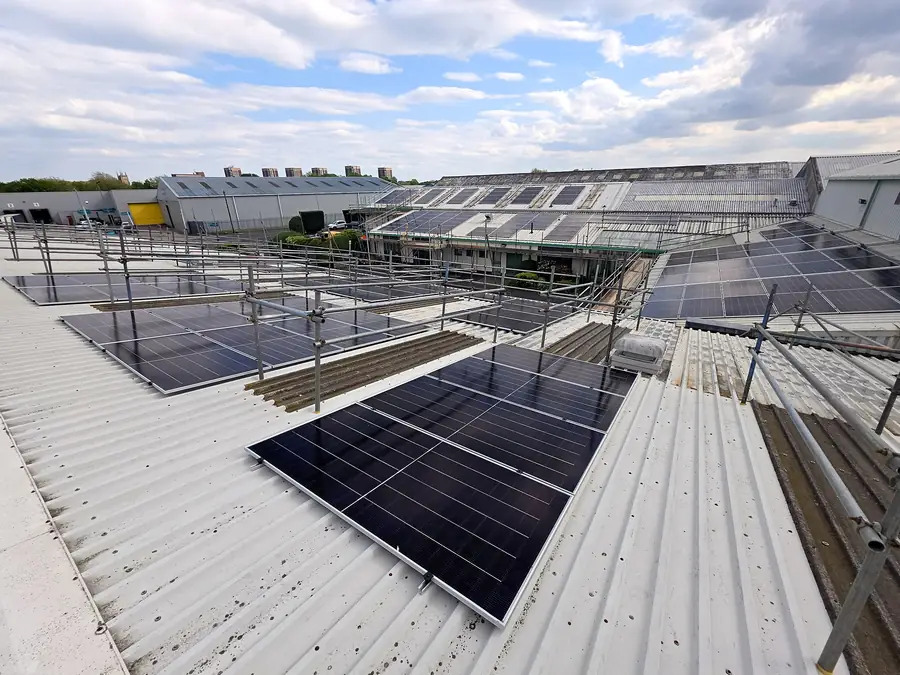

Completed array with scaffold edge protection
Completed array with scaffold edge protection

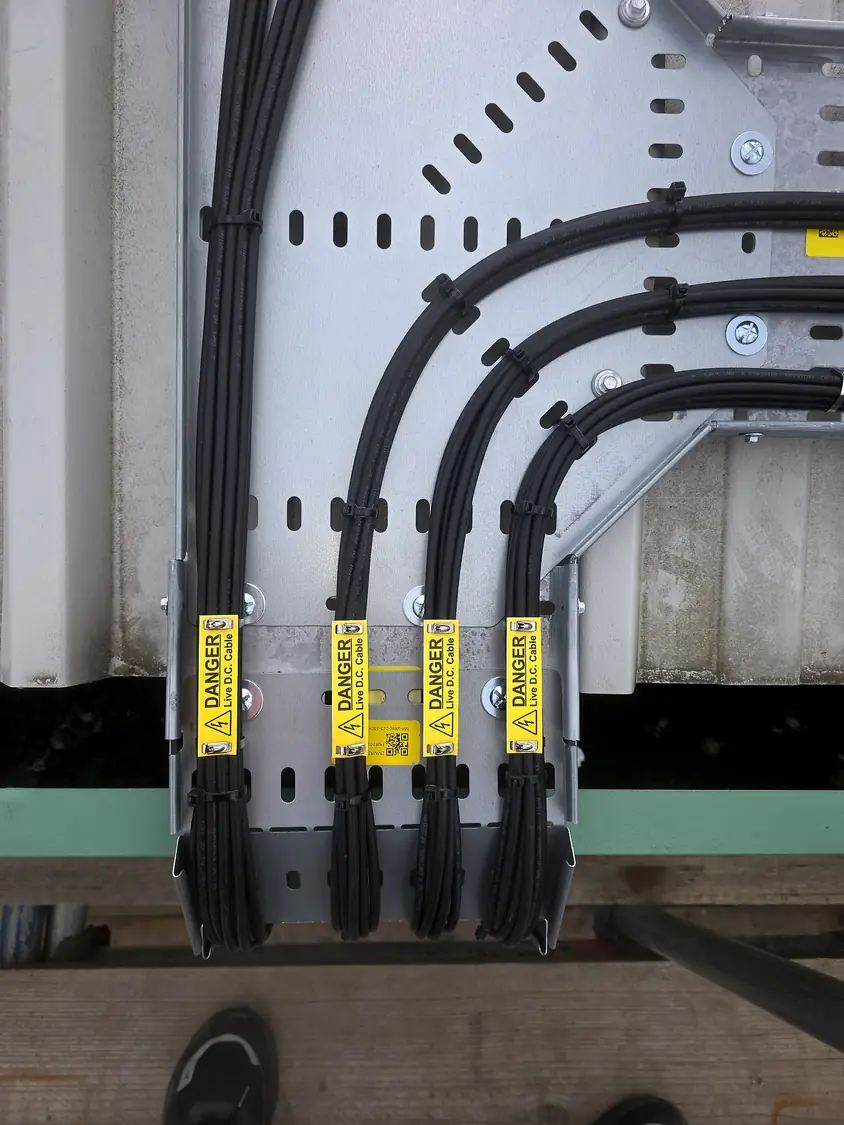

DC cables labelled “Danger – Live D.C. Cable”
DC cables labelled “Danger – Live D.C. Cable”

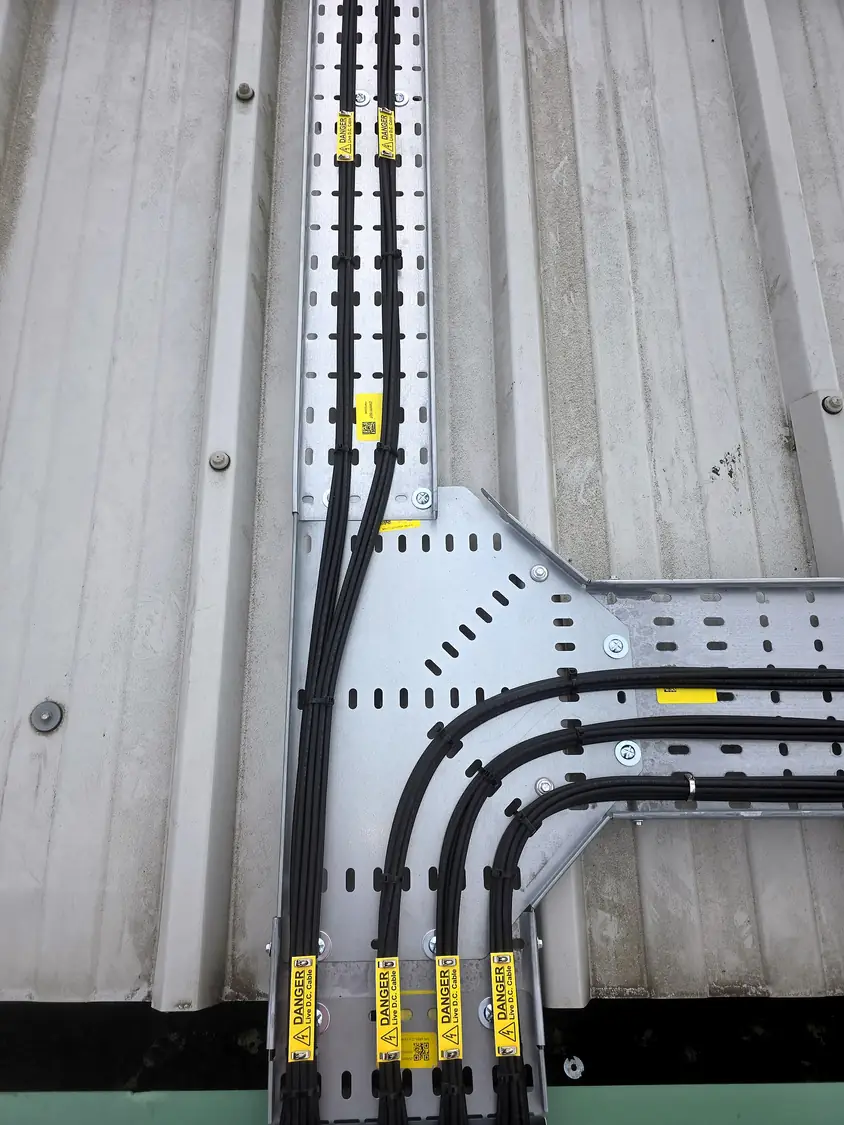

DC cable tray junction with labelled cables
DC cable tray junction with labelled cables

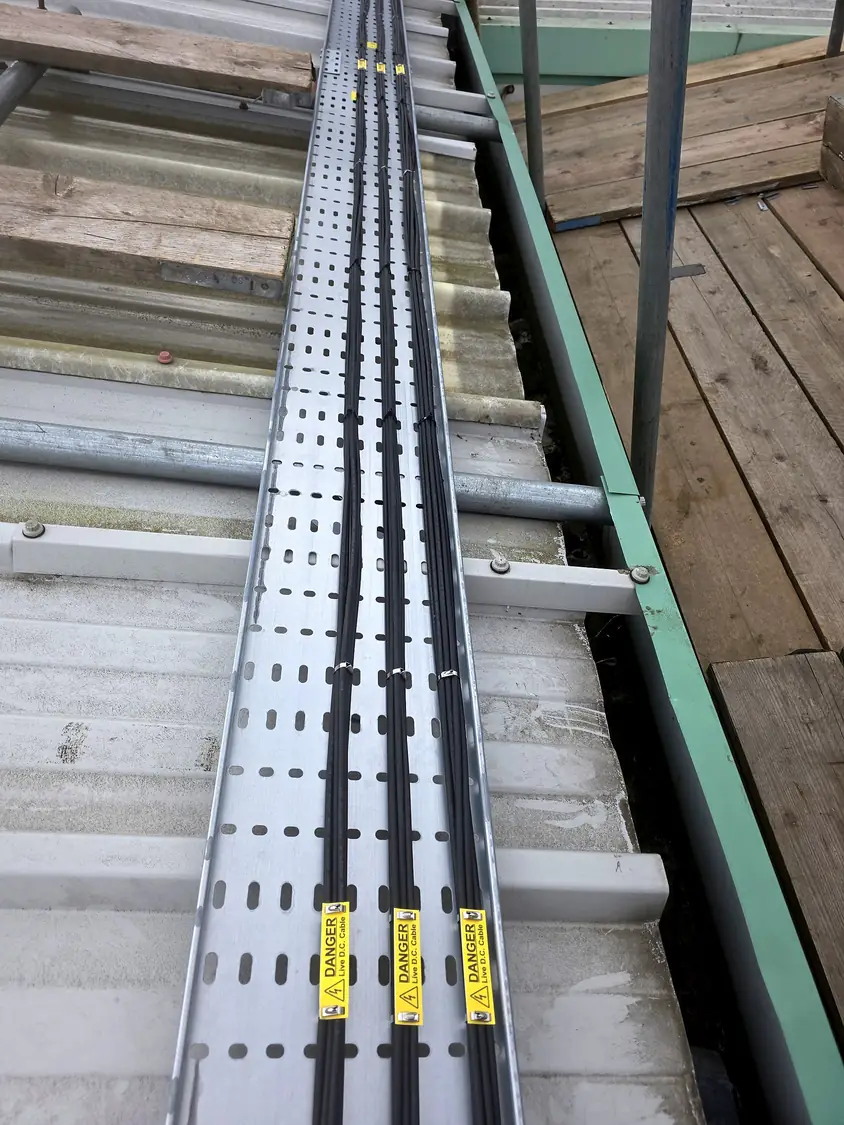

Labelled DC cable runs in tray
Labelled DC cable runs in tray

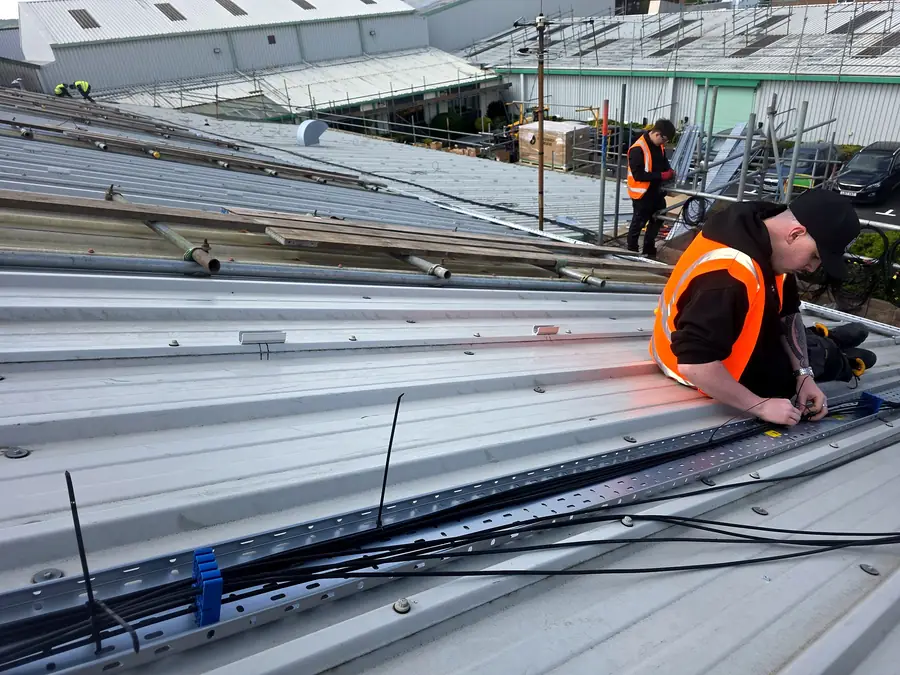

Dressing DC cables into the roof tray
Dressing DC cables into the roof tray

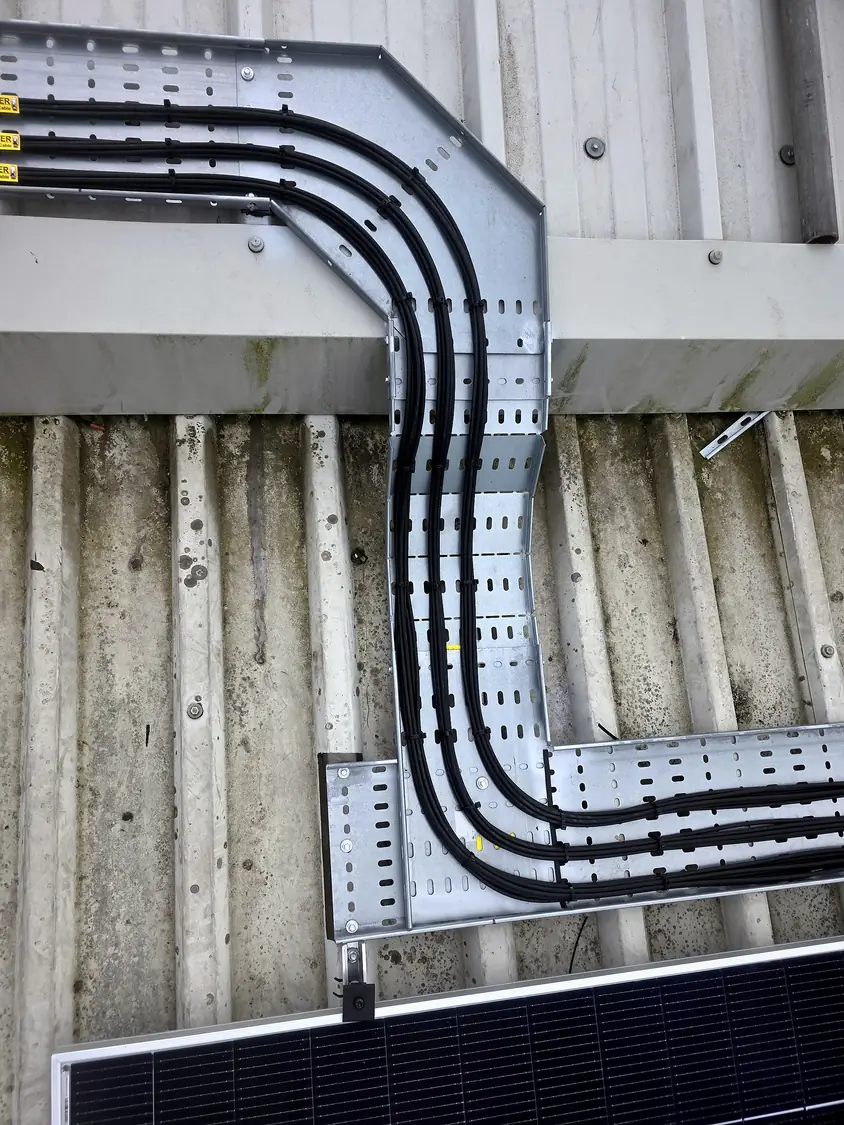

DC cable tray bend down to the array
DC cable tray bend down to the array

AC / electrical installation

Two GoodWe inverters on strut framing with AC isolators and surge protection, terminated and tested.

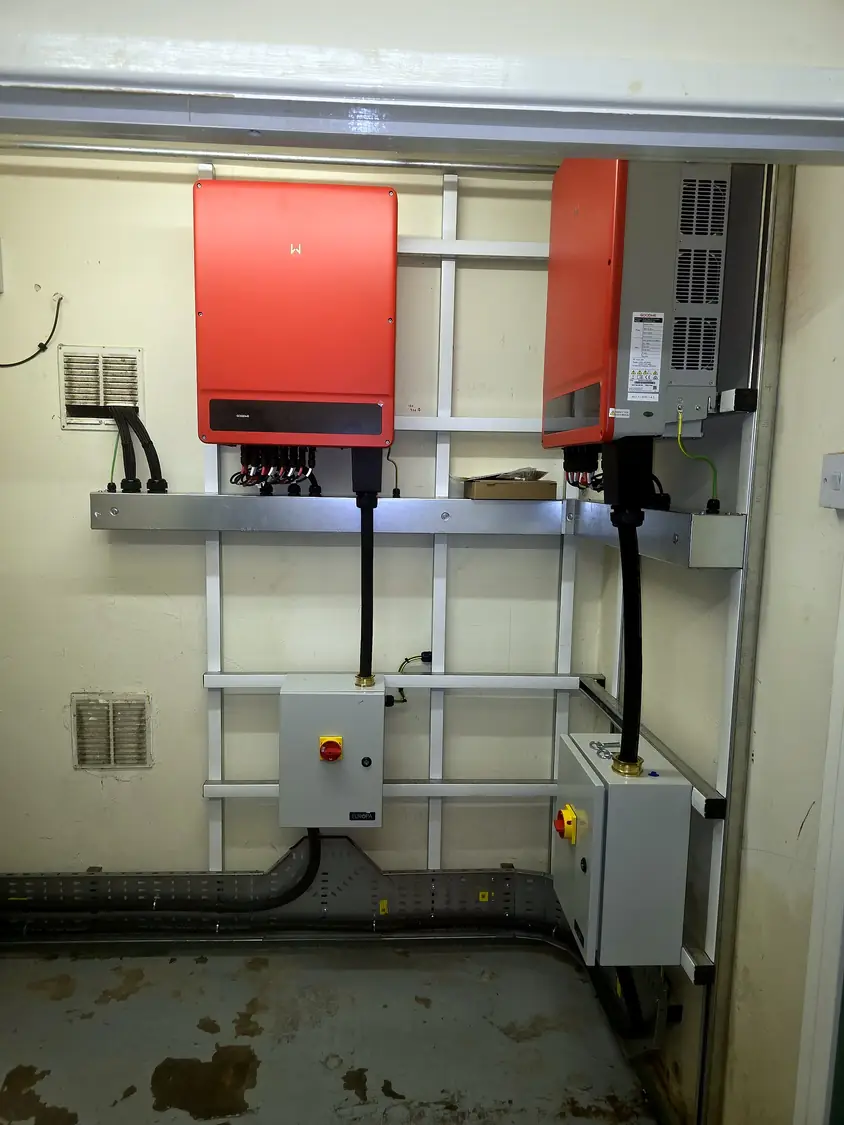

Completed inverter installation: two GoodWe inverters with AC isolators
Completed inverter installation: two GoodWe inverters with AC isolators

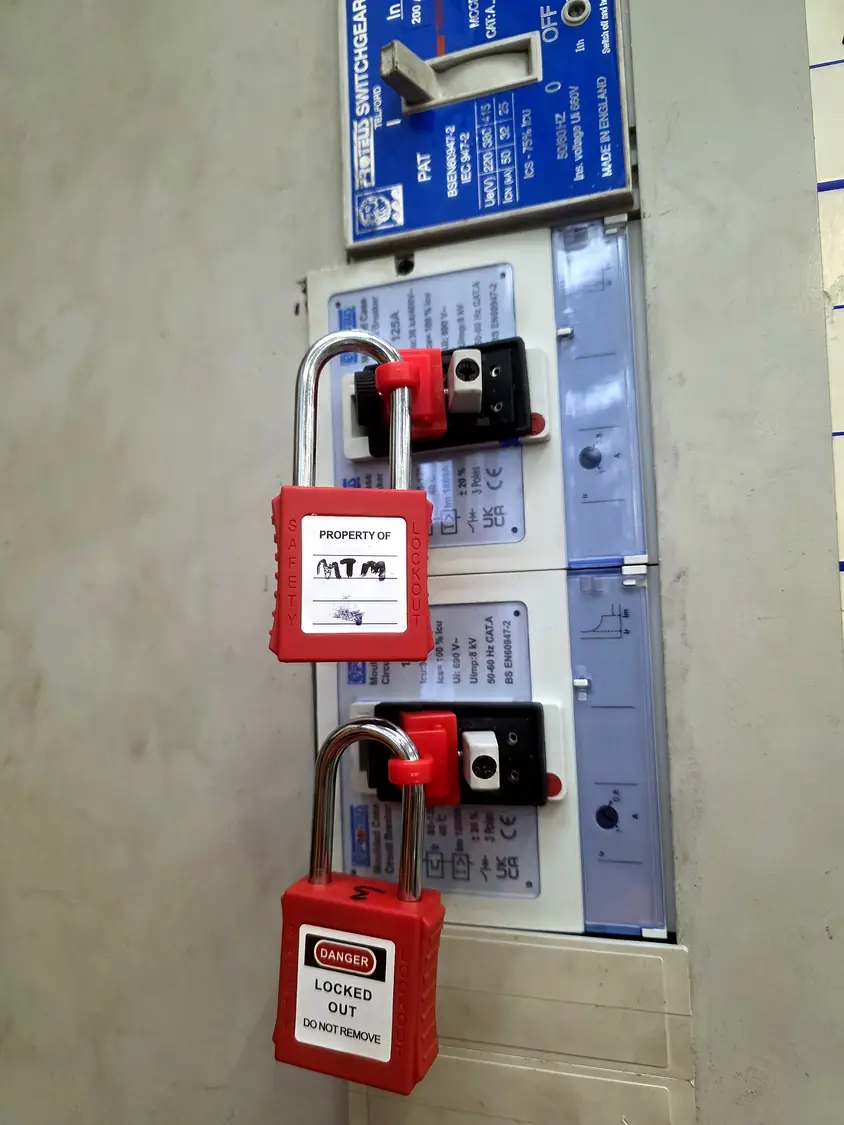

MCCBs locked off with lockout devices and padlocks
MCCBs locked off with lockout devices and padlocks

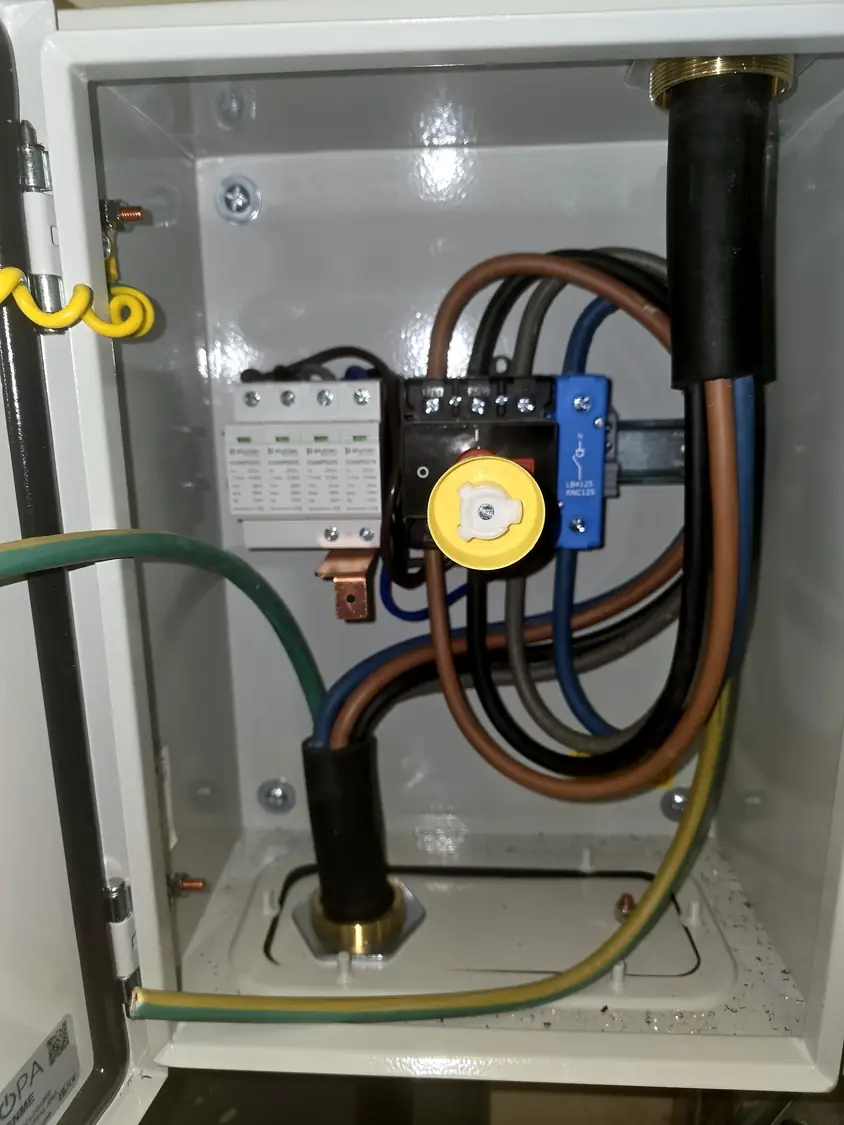

AC isolator and surge protection terminated
AC isolator and surge protection terminated

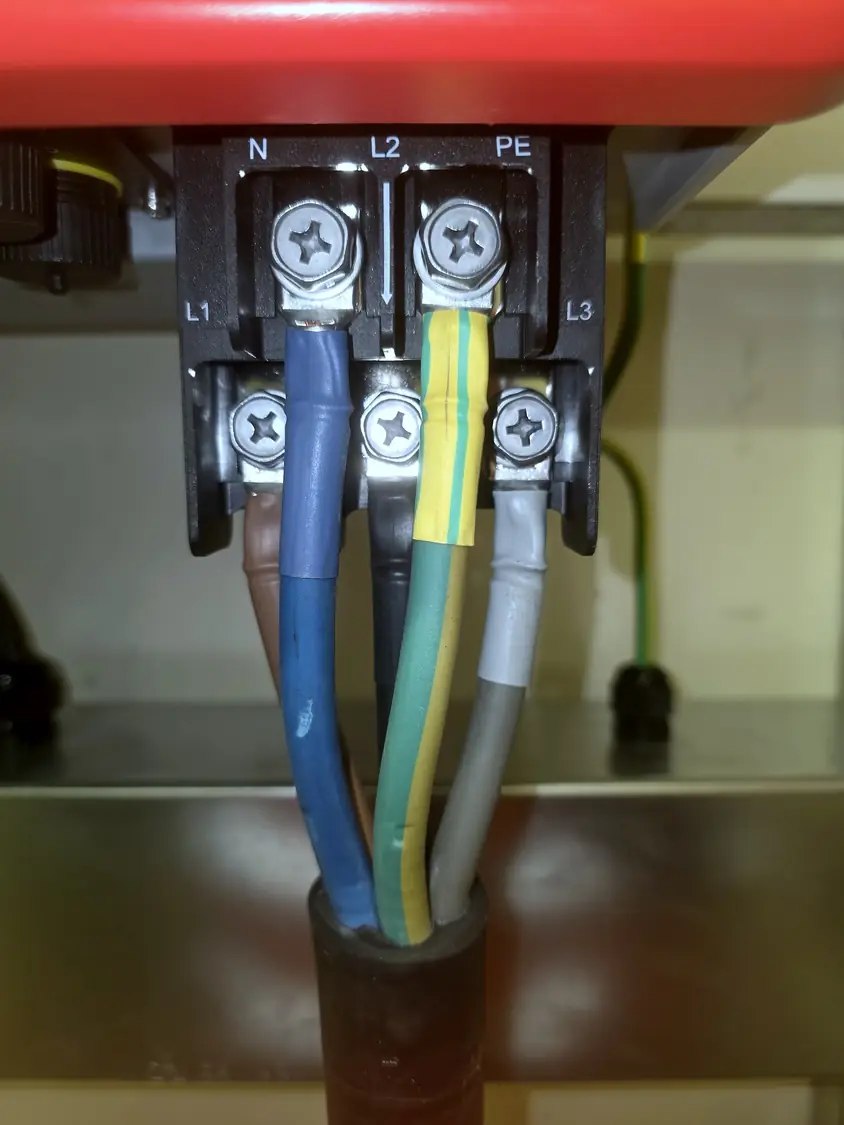

AC terminations at the inverter
AC terminations at the inverter

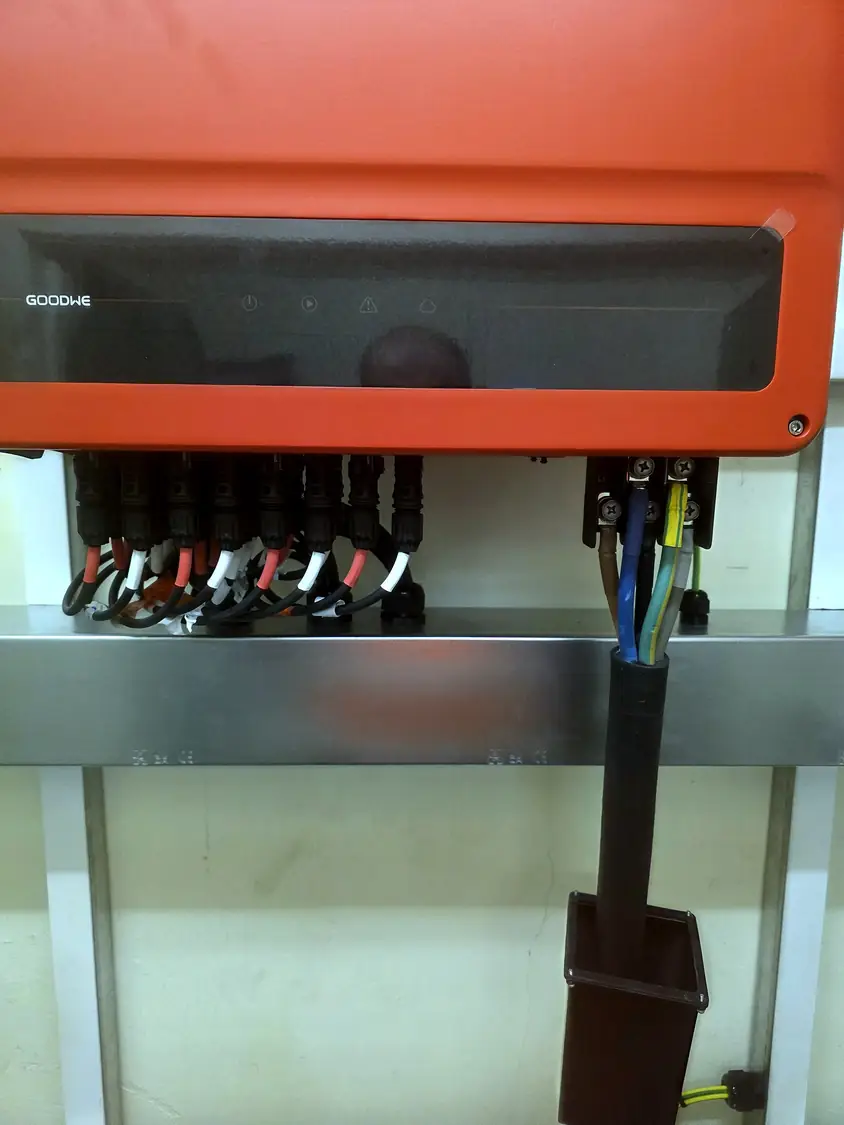

DC string connections at the inverter
DC string connections at the inverter
